Product name : 250mm / 330mm PCB Loader Equipment
Other name : Magazine Loader
Transport height : 920±20mm
PCB loading time : Approx 6 seconds
Magazine replace time : Approx 30 seconds
Transportation direction : L~R, or R~L
Operation : Front operation
PCB thickness : Min 0.4mm
Belt Transporting PCB Width Adjustment 3 Color Display SMT Magazine Loader
Features
Specification
Model | HS-LD330 |
Product name | PCB Magazine Loader |
Transport height | 920±20mm |
PCB loading time | Approx 6 seconds |
Magazine replace time | Approx 30 seconds |
Transportation direction | L~R, or R~L |
Operation | Front operation |
Track fixed side | Front side(or specify) |
Power supply | 220V,50/60Hz,±10% |
Air pressure | 4-6bar |
PCB thickness | Min 0.4mm |
Magazine qty | Upper side:1 pc,bottom side: 2 pc |
Pitch selection | 1-4(10mm pitch) |
Conveyor speed | 0.5-20M/min or customized |
Signal | SMEMA |
Model selection
Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
Weight | 140kg | 180kg | 220kg | 260kg |
Application
This machine is a PCB loading machine, it used in the start of SMT production line, the machine push the PCB from magazine racks and transporting to the downstream machine of the production line.
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
![]() |

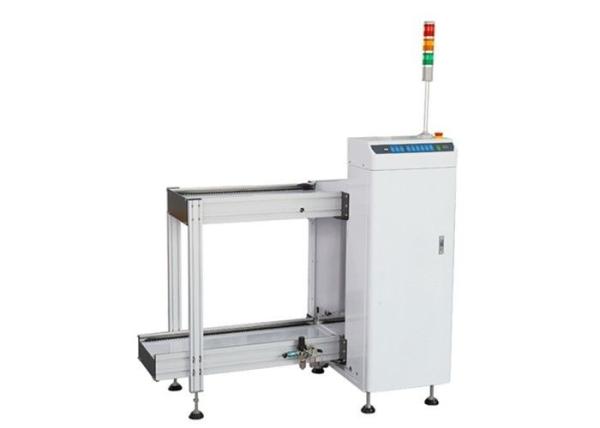

PCB Pusher 3 Color Display SMT Magazine Loader Front Operation Images |
